10G SFP+ DAC



10Gtek® SFP+ DAC cable based on IEEE 802.3ae and MSA SFF-8472, SFF-8431, support 1~10G multi-rate communication and application such as 10G Ethernet,  8~10FC. 10GBase SFP+ Cables offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet and service provider transport applications, such as switches, routers, and other data communication equipments. I
10Gtek® offers 10G passive SFP+ twinax cables in lengths of 0.5 to 10 meters and active SFP+ cables in lengths of 1 to 15 meters.

SFP28 DAC cable based on IEEE 802.3by and MSA SFF-8402, supports 10G~25G multi-rate communication and application in 10/25GE, 16/32FC. 10Gtek® offers passive SFP28 twinax cables in lengths of 0.5 to 5 meters.



If you need customized services, please contact Info@10gtek.com for more details.



10G SFP+ DAC   -Standard Compliance

IEEE 802.3ae

Electrical:        SFF-8431, SFF-8083

Mechanical:    SFF-8432

EEPROM:       SFF-8431

Active Cable:  SFF-8461



25G SFP+DAC   -Standard Compliance

IEEE 802.3by

SFF-8402

SFF-8432







SFP+ Passive Cable Assembly Length Recommendation






SFP+ Active Cable Assembly Length Recommendation






Signal  Integrity Lab

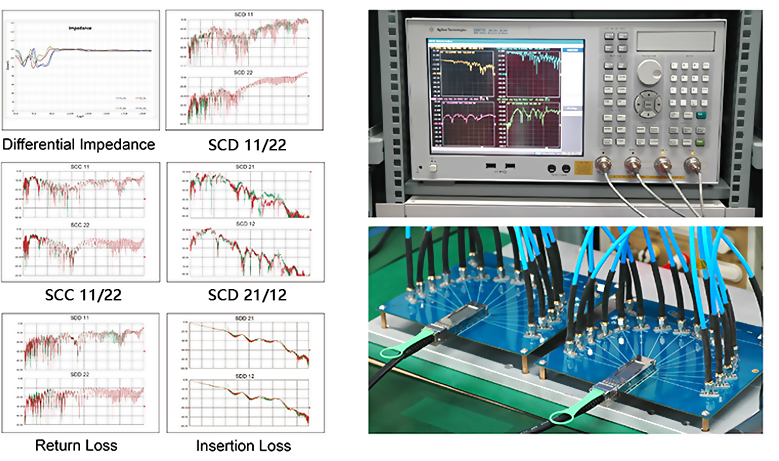

10Gtek owns a Signal Integrity Lab with equipment like TDR,TDT,VNA,PNA,RF matrix switch, which can achieve 18G~40GHz high-speed simulation design, S-parameter analysis, TDR parameter test.




10G Passive SFP+ Cable

  • SFP+ to SFP+ Connetor
  • 2-pair differential twinax cable
  • Impedance: 100-ohm
  • Passive
  • AWG30/28/26/24
  • EEPROM or MCU for I2C which can be customized
  • Compliant to SFP MSA
  • Low power consumption
  • Excellent EMI performance
  • RoHS Compliant
  • Wide operating temperature range:     Standard: 0ºC to +70ºC
                                                                 Industrial: -40ºC to +85ºC
  • 1-8G Fiber Channel and 1-10G Gigabit Ethernet
  • Networking, Storage, Telecommunications
  • Hub, Switches, Routers, Servers, Network Interface Card(NICs)
P/N Description Passive
Active
Data Rate
(bps)
Length
(meter)
AWG I2C
CAB-10GSFP-P50CM SFP+ DAC Twinax Cable, 0.5-Meter, Passive, AWG30 Passive 10 G 0.5  30 eeprom
CAB-10GSFP-P1M SFP+ Copper Twinax cable, 1- Meter, passive , AWG30 Passive 10 G 1.0  30 eeprom
CAB-10GSFP-P1.5M SFP+ Copper Twinax cable, 1.5-Meter, passive , AWG30 Passive 10 G 1.5  30 eeprom
CAB-10GSFP-P2M SFP+ Copper Twinax cable, 2 -Meter, passive, AWG30 Passive 10 G 2.0  30 eeprom
CAB-10GSFP-P2.5M SFP+ Copper Twinax cable, 2.5 -Meter, passive, AWG30 Passive 10 G 2.5  30 eeprom
CAB-10GSFP-P3M SFP+ Copper Twinax cable, 3 -Meter, passive, AWG30 Passive 10 G 3.0  30 eeprom
CAB-10GSFP-P5M SFP+ Copper Twinax cable ,5- Meter, passive, AWG30 Passive 10 G 5.0  30/24 eeprom
CAB-10GSFP-P7M SFP+ Copper Twinax cable, 7- Meter, passive, AWG24 Passive 10 G 7.0  24 eeprom

10G Active SFP+ Cable

  • SFP+ to SFP+ Connetor
  • 2-pair differential twinax cable
  • Impedance: 100-ohm
  • Active with,a signal amplification and Clock and Data Recovery(CDR)
  • AWG30/28/26/24
  • EEPROM or MCU for I2C which can be customized
  • Compliant to SFP MSA
  • Excellent EMI performance
  • RoHS Compliant
  • Wide operating temperature range:    Standard: 0ºC to +70ºC
  • 1-8G Fiber Channel and 1-10G Gigabit Ethernet
  • Networking, Storage, Telecommunications
  • Hub, Switches, Routers, Servers, Network Interface Card(NICs)
P/N Description Passive
Active
Data Rate
(bps)
Length
(meter)
AWG I2C
CAB-10GSFP-A1M SFP+ Copper Twinax Cable, 1-Meter, Active Passive 10 G 1.0  30 eeprom
CAB-10GSFP-A2M SFP+ Copper Twinax Cable, 2-Meter, Active Passive 10 G 2.0  30 eeprom
CAB-10GSFP-A3M SFP+ Copper Twinax, Cable, 3-Meter, Active Passive 10 G 3.0  30 eeprom
CAB-10GSFP-A5M SFP+ Copper Twinax cable, 5- Meter, active Passive 10 G 5.0  30 eeprom
CAB-10GSFP-A7M SFP+ Copper Twinax cable, 7- Meter, active Passive 10 G 7.0  30/28 eeprom
CAB-10GSFP-A10M SFP+ Copper Twinax cable, 10-Meter, active Passive 10 G 10.0  28/24 eeprom
CAB-10GSFP-A12M SFP+ Copper Twinax cable, 12-Meter, active Passive 10 G 12.0  24 eeprom
CAB-10GSFP-A15M SFP+ Copper Twinax cable, 15- Meter, active Passive 10 G 15.0  24 eeprom

25G Passive SFP+ Cable

  • SFP+ to SFP+ Connetor
  • 2-pair differential twinax cable
  • Impedance: 100-ohm
  • Passive
  • AWG30/28/26/24
  • EEPROM or MCU for I2C which can be customized
  • Compliant to SFP MSA
  • Low power consumption
  • Excellent EMI performance
  • RoHS Compliant
  • Wide operating temperature range:    Standard: 0ºC to +70ºC
                                                                Industrial: -40ºC to +85ºC
  • 25G Ethernet
P/N Description Passive
Active
Data Rate (bps) Length
(meter)
AWG I2C
CAB-ZSP/ZSP-P0.5M 25G SFP28 DAC Cable, 0.5-Meter Passive  25 G 0.5  30 eeprom
CAB-ZSP/ZSP-P1M 25G SFP28 DAC Cable, 1-Meter Passive  25 G 1.0  30 eeprom
CAB-ZSP/ZSP-P1.5M 25G SFP28 DAC Cable, 1.5-Meter Passive  25 G 1.5  30 eeprom
CAB-ZSP/ZSP-P2M 25G SFP28 DAC Cable, 2-Meter Passive  25 G 2.0  30 eeprom
CAB-ZSP/ZSP-P2.5M 25G SFP28 DAC Cable, 2.5-Meter Passive  25 G 2.5  30 eeprom
CAB-ZSP/ZSP-P3M 25G SFP28 DAC Cable, 3-Meter Passive  25 G 3.0  30/28 eeprom
CAB-ZSP/ZSP-P4M 25G SFP28 DAC Cable, 4-Meter Passive  25 G 4.0  26 eeprom
CAB-ZSP/ZSP-P5M 25G SFP28 DAC Cable, 5-Meter Passive  25 G 5.0  26 eeprom
