NVMe SSD Adapter for M.2 SSD





10Gtek’s NVMe SSD Adapter Series provide the solution for extending high-performance enterprise-class storage to your PC or server. Featured either single, dual or quad internal M.2(M Key) sockets for different lengths of NVMe SSDs (2230, 2242, 2260, 2280 and 22110) , the adapters can realize high-performance and low power storage expandability. NV9524-4I features a PCIe x8 interface and builds in a PEX 8724 controller, which can provide the PCIe lane’s bifurcation. NV95NF and NV95N8 feature PCIe x16 or x8 interface, which can support up to 4x NVMe SSDs and 2x NVMe SSDs, but both of them require motherboards and BIOS supporting bifurcation otherwise only one drive can be recognized. NV95N4 provides one M Key M.2 socket and another B Key M.2 socket, allowing simultaneously a NVMe M.2 SSD and a SATA drive connecting to the system.

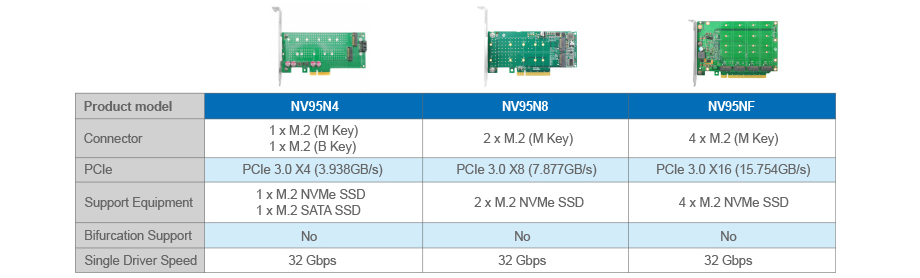

NVMe SSD Adapter for M.2 SSD

P/N Description
NV95N4 PCIe X4 NVMe SSD Adapter for M.2 SSD, (1) M.2(M Key) or (1) M.2(B Key)
NV95N8 PCIe X8 NVMe SSD Adapter for M.2 SSD, (2) M.2(M Key)
NV95NF PCIe X16 NVMe SSD Adapter for M.2 SSD, (4) M.2(M Key)
NV9524-4I PCIe X8 NVMe SSD Adapter for M.2 SSD, (4) M.2(M Key)
