Loopback

10Gtek manufactures a complete line of electrical loopback solutions supporting SFP (Small Form Factor Pluggable), SFP+, QSFP+ and QSFP28 transceiver form factors. 10Gtek loopback products support Gigabit Ethernet (2.25Gbps, 4Gbps, 10Gbps, 25Gbps, 40Gbps and 100Gbps), Fibre Channel (4Gbps, 8Gbps, 16Gbps), and Infiniband (2.5Gbps, 5Gbps, 10Gbps, 14Gbps) protocols.





10G SFP+

10G SFP+

SFP+ electrical loopback is used for testing SFP+ transceiver ports in host/system boards. By substituting a full-featured SFP+ transceiver, the electrical loopback provides a cost effective method for SFP+ port testing.

Attenuation options are available in nominal and attenuated versions including 0db, 3.5db and 5db; power options are 1W, 2W, 2.5W; plug in and out can reach to 500times.

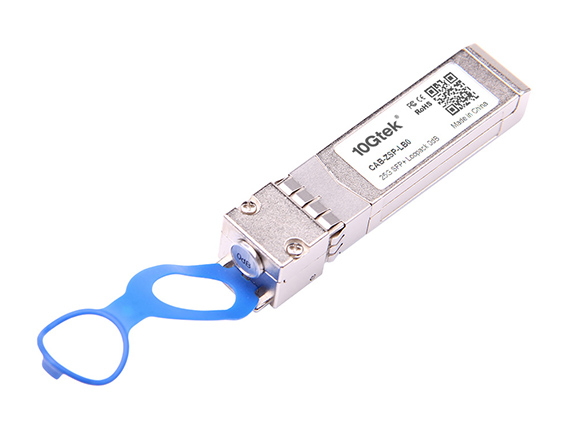

25G SFP28

25G SFP28

SFP28 electrical loopbacks provide a method for port operations testing in board, hub, system, and other applications.

Attenuation options are available in nominal and attenuated versions including 0db, 3.5db and 5db; power options are 1W, 2W, 2.5W; plug in and out can reach to 500times.

40G QSFP+

40G QSFP+

QSFP/QSFP+ passive electrical loopback is used for testing QSFP/QSFP+ transceiver ports in board level test. By substituting for a full-featured QSFP/QSFP+ transceiver, the electrical loopback provides a cost effective low loss method for QSFP/QSFP+ port testing.

Attenuation options are available in nominal and attenuated versions including 0db, 3.5db and 5db; power options are 1W, 2.5W, 3.5W; plug in and out can reach to 500times.

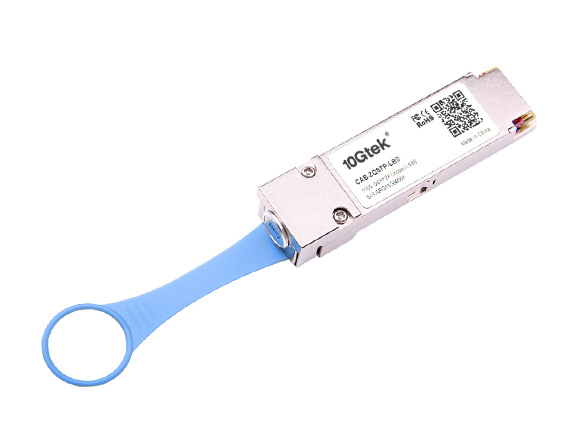

100G QSFP28

100G QSFP28

QSFP28 passive electrical loopback is used for testing QSFP28 transceiver ports in board level test. By substituting for a full-featured QSFP28 transceiver, the electrical loopback provides a cost effective low loss method for QSFP28 port testing.

Attenuation options are available in nominal and attenuated versions including 0db, 3.5db and 5db; power options are 1W, 2.5W, 3.5W; plug in and out can reach to 500times.

Loopback Clamp

Loopback Clamp

The 4-port loopback clamps enable simultaneous testing of 4 ports at once. They possess all features of a single SFP+/QSFP+ loopback test adapter with an extra lock-protection to ensure safe locking during the measuring process. Models of 1x2, 1x3, 1x4, 2x2 of loopback clamps are available to provide.

The 4-port looback lamps are used for testing ports under board level tests. These loopbacks test port operation in equipment where transceivers are to be installed. The loopbacks are packaged in a standard MSA housing.



Gang Holder

Gang Holder

The 4-port gang holders enable simultaneous test 4 ports at once. They possess all features of a single SFP+/QSFP+ loopback test adapter with an extra lock-protection to ensure safe locking during the measuring process. Models of 1x2, 2x2 port to port gang holders with cable are available to provide.

Gang holders are used for testing ports under board level tests. These loopbacks test port operation in equipment where transceivers are to be installed. The loopbacks are packaged in a standard MSA housing.
