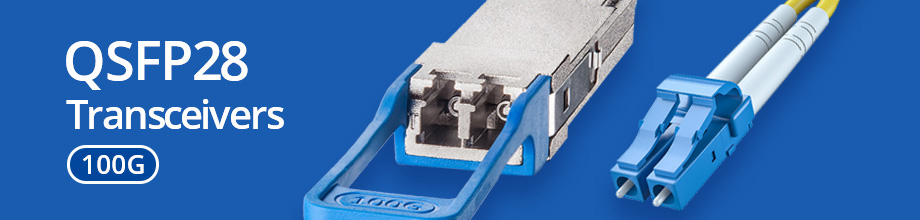

100G QSFP28 Transceivers



10Gtek 100G QSFP28 transceivers include SR4, LR4, IR4 PSM, CWDM4 series.
The 100G QSFP28 transceivers are compliant with IEEE 802.3bm and MSA SFF-8665.





STANDARD COMPLIANCE


IEEE 802.3bm
SFF-8661 (QSFP+ 4X Module Specification)
SFF-8672 (4X 28Gb/s Connector)
SFF-8679 (QSFP+ 4X Hardware and Electrical Specification)
SFF-8665 ( QSFP+ 4X 28 Gb/s Pluggable Transceiver Solution)



100G QSFP28

  • 4 independent full-duplex channels
  • Up to 28Gb/s data rate per channel
  • QSFP28 MSA compliant
  • Up to 100m OM4 MMF transmission
  • Operating case temperature: 0 to 70ºC
  • Single 3.3V power supply
  • Maximum power consumption 3.5W
  • MTP/MPO optical connector
  • Rack to Rack
  • Data Center
  • Infiniband QDR, DDR and SDR
  • 100G Ethernet
Part No. Spec. Data Rate
(bps)
Wavelength
(nm)
Fiber
Type
Distance Optical
Comp.
Tx Power
(dBm)
Rx Sens.
(dBm)
Temp.
(℃)
AMQ28-SR4-M1 QSFP28 SR4 100G 850 8x MMF OM3 70 m
OM4 100 m
VCSEL -6~2.4 -10.3~2.4 0~70
ALQ28-IR4-02 (PSM) QSFP28 IR4 PSM 100G 1310 8x SMF 2 km DML/PIN -8.4~2.4 -11 0~70
ALCQ28-CW4-02 QSFP28 CWDM4 100G CWDM 2x SMF 2 km DML/PIN -6.5~2.5 -10~2.5 0~70
QSFP28-161HG-02-R QSFP28 IR4 100G LWDM 2x SMF 2 km DML/PIN -6.5~2.5 -10~2.5 0~70
ALQ28-LR4-10 LR4 100G LWDM 2x SMF 10 km DML/PIN -4.3~4.5 -10.6~4.5 0~70
ALQ28-LR4-20 ELR4+ 100G LWDM 2x SMF 20 km DML/PIN -2.5~4.5 -14.5~4.5 0~70
ALQ28-LR4-40* ER4* 100G LWDM 2x SMF 30~40 km EML/APD -2.5~2.9 -20.5~-3.5 0~70
