25G/100G NIC



10Gtek’s 25G NICs also use Intel XXV710 series chips. These NICs come in 2 ports, supporting SFP28 slot. These cards are supporting Windows, Linux, Red Hat, SUSE, Ubuntu, VMware ESXi and other operating systems.

10Gtek’s 100G NICs support 100GbE application. 100G NICs use Mellanox ConnectX-4 series chips. These NICs come in 1~2 ports, supporting QSFP28 slot. These cards are supporting Windows, Linux, Red Hat, SUSE, Ubuntu, VMware ESXi and other operating systems.



Intel XXV710 Series Controllers



Mellanox ConnectX-4 Series Controllers



Note :
Regarding Synology, QNAP devices support: It is recommended that you consult the official device documentation (please refer to the link below). If it supports the corresponding network card controller chip, it will work.
Synology Compatibility List:https://www.synology.com/zh-cn/compatibility
QNAP Compatibility List:https://www.qnap.com.cn/zh-cn/compatibility/

Regarding FreeNAS, UnRaid, OpenWRT, iKuai, RouterOS, Proxmox VE operating system support: Customers are advised to consult the official device support documents of the OS system. If it supports the corresponding network card chip, it will work.

25/100 Gigabit Ethernet CNA

Part Number Speed Controller(s) Port number Port type Compatibility

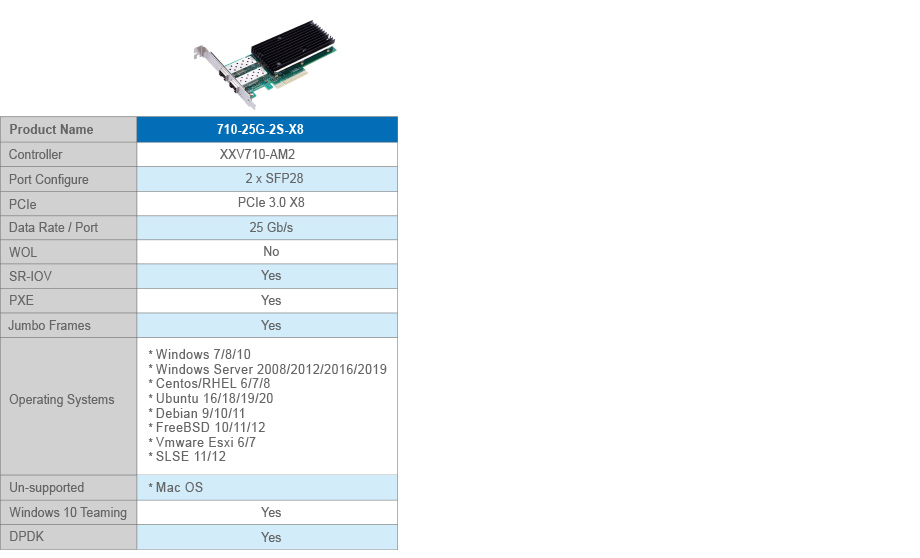

710-25G-2S-X8 25G Intel XXV710 2 SFP28 Intel XXV710-DA2
MCX456A-ECAT 100G Mellanox ConnectX-4 VPI 2 QSFP28 Mellanox MCX456A-ECAT
MCX415A-CCAT 100G Mellanox ConnectX-4 EN 1 QSFP28 Mellanox MCX415A-CCAT
MCX416A-CCAT 100G Mellanox ConnectX-4 EN 2 QSFP28 Mellanox MCX416A-CCAT
