HDMI Series

HDMI Transceiver

HDMI Transceiver

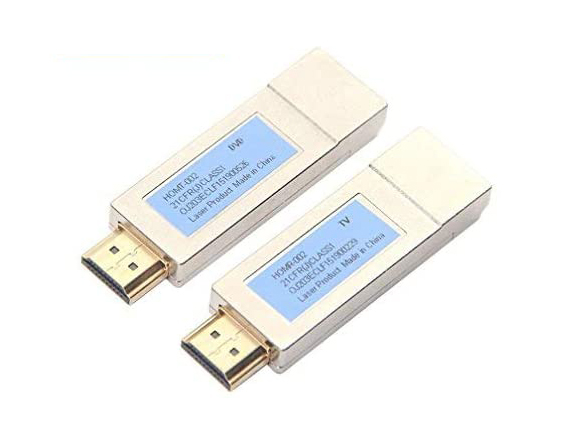

10Gtek's HDMI Transceiver is a flexible alternative for those who are looking for a solution of HDMI. The HDMI Transceiver supports HDMI 1.3, which means 1080P is supported and the bandwidth is 4.95 Gbps.



The HDMI Transceiver is supposed to use in a pair since the transmitter side (DVD) and the receiver side (TV) are separated. In order to make it work properly, the transceiver of DVD should be connected to the signal source while the transceiver of TV should be connected to the display end.



The additional power supply is needed for both transceivers, which are included in the package already.

HDMI AOC

HDMI AOC

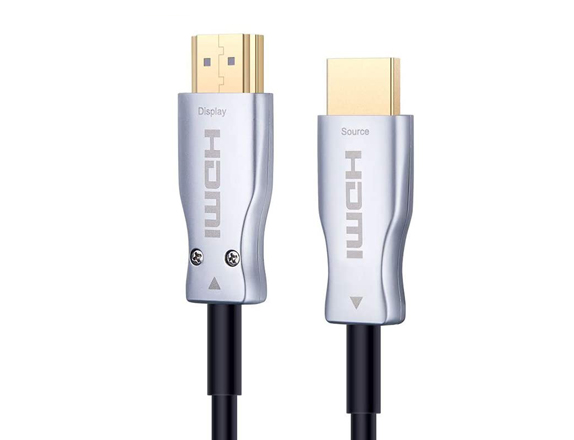

There are two types of HDMI AOC provided by the 10Gtek, which are the hybrid cable (copper & fiber) and 4-core fiber (fiber only). Technically, HDMI AOC has better performance in transmitting signals to the display device on account of the perfect material used inside the cable for signal transmission, which is the fiber.



The HDMI hybrid cable has both copper and fiber inside the cable. It gives the HDMI hybrid cable a feature that no external power supply is needed in practice. The most popular HDMI standard, HDMI 2.0, is supported by the HDMI hybrid cable of 10Gtek, which means it supports 4Kx2K@60 Hz with the transmission rate of 18 Gbps.



While the HDMI 4-core fiber supports HDMI 1.4 and it might require an external power supply at the connector side of Display when the power is not enough. In fact, there is a USB Input Power Adapter provided in the package in case of an external power need according to a particular situation. HDMI 1.4 features the capbility of 4Kx2K@30 Hz with the transmission rate of 10.2 Gbps.

HDMI Converter

HDMI Converter

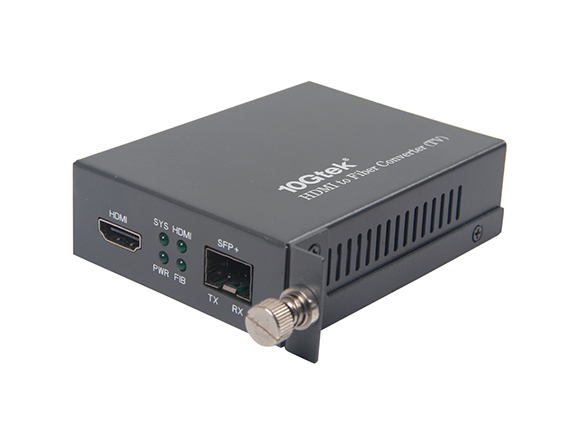

10Gtek's HDMI Converter is specially applied for transmission range of over 100 meters. For this purpose, a conversion between electricity and light exists inside of the converter. Fiber greatly reduces the consumption during the transmission of the signal, which makes it a stable and ideal material for optical communication.



HDMI converter features having an HDMI port and an optical port (SFP+ etc.) Therefore, optical transceivers are required to use along with the HDMI converters in order to make them works. Please be aware that the there is a converter of DVD which means it should be used for the side of signal source, and there is a converter of TV which means it should be used for the display end.

HDMI Extender

HDMI Extender

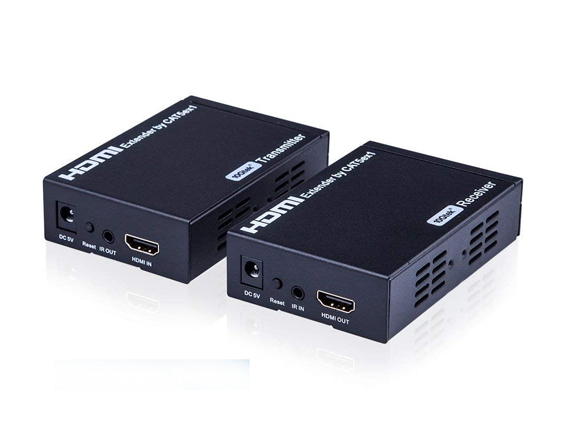

10Gtek's HDMI Extender is meant to extend the transmission to a range between 10 meters and 100 meters. For the side of the transmitter, the signal comes from the port HDMI and transfers to the port RJ45. It's easy understanding and easy to use.



HDMI Extender should use in a pair. The side of the transmitter is supposed to connect with the end of signal source such as the PC (personal computer) while the side of the receiver is supposed to connect with the end of display such as the television.



For the HDMI Extender of 10Gtek, the standard HDMI 2.0 can be supported, which means the resolution of 4K@60 Hz is available and dual video streams displayed on the same screen is possible.
