CAB-ZSP/ZSP-P5M

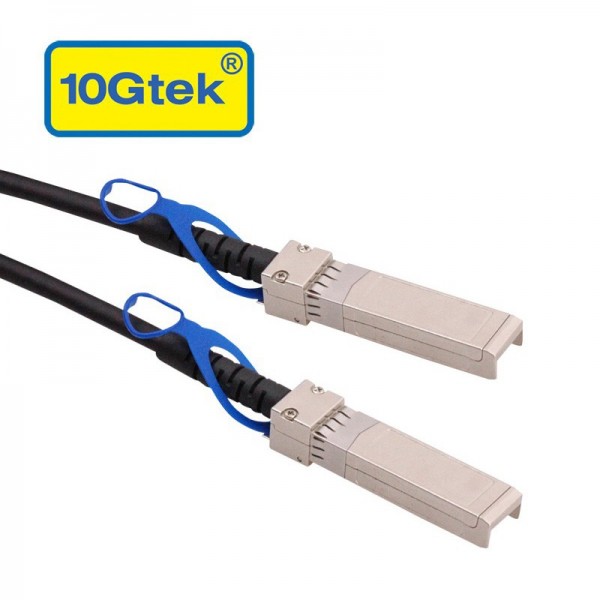

SFP28 to SFP28 DAC

10Gtek's copper cables A8D1006 contains a single high-speed copper pair, operating at data rates of up to 25 Gb/s. The cables are compliant with IEEE 802.3 by Ethernet standard and SFF-8402 SFP28 standard. Each SFP28 connector comprises an EEPROM providing product information which can be read by the host system. 10Gtek’s unique quality passive copper cable solutions provide efficient connectivity for short distance interconnects. It enables higher port bandwidth, density, and configurability at a low cost and reduced power requirement in the data centers. Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

order
? 25Gb/s
? 5-Meter
? SFP28 to SFP28
? Direct Attached Copper Cable
Features:
? Up to 25Gb/s data rate SFF-8402 Compliant

? Operating case temperature of 0-70 °C

? Single 3.3V supply voltage

? BER better than 10-15

? Hot pluggable

? Compliant with SFF-8432

? Compliant with IEEE 802.3by

? Compliant with RoHS

Applications:
? 25G Ethernet
