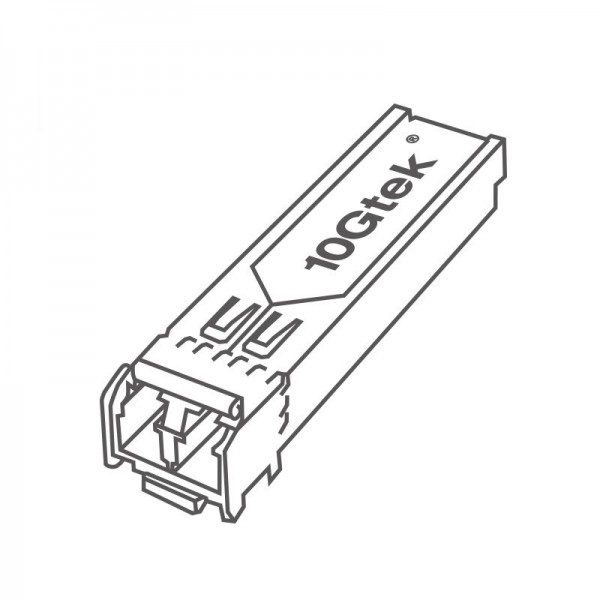

AZS13-S28-10

SFP28 LR

The AZS13-S28-10 is 1310 nm DFB 25Gigabit SFP28 transceiver. It is designed to transmit and receive optical data over single multimode optical fiber (SMF) and support up to 10km. The module has a duplex LC optical interface and all mechanical characteristics are compliant with the current SFP+ specification (SFF-8472 and SFF-8432).

order
? 25Gb/s serial optical interface

? 1310nm DFB transmitter, PIN photo- detector

? 2-wire interface for management

? Compliant with SFF 8472

? Digital diagnostic monitoring interface for optical transceivers

? Operating case temperature: 0 °C to 70°C

? Cost effective SFP28 solution, enables higher port densities and greater bandwidth

? RoHS compliant
? High-speed storage area networks

? Computer cluster cross-connect

? Custom high-speed data pipes
