AOC-Q1Q1-005

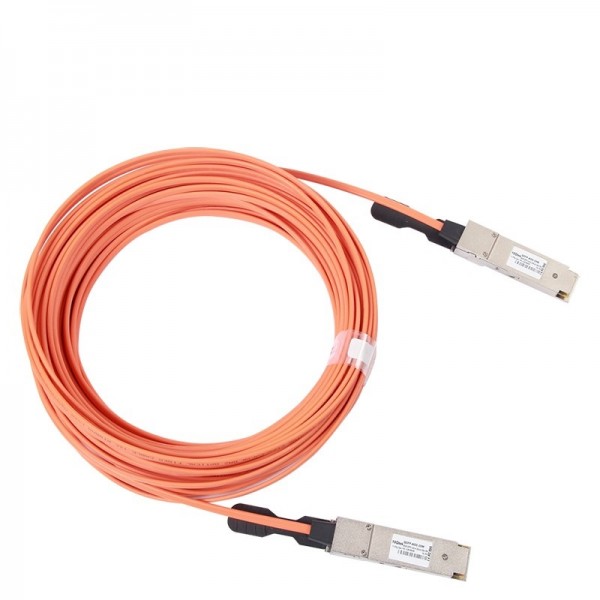

QSFP+ to QSFP+ AOC

10Gtek's QSFP+ Active Optical Cable (AOC) is a high performance, low power consumption integrated cable for short-range multi-lane data communication and interconnect applications, supporting 40G Ethernet, fiber channel, and PCI-E. This cable offers the same function with Cisco QSFP-H40G-AOC5M and it is fully compatible with Cisco devices. It is compliant with the QSFP+ MSA and IEEE P802.3ba 40GBASE-SR4. It integrates four data lanes in each direction with 40 Gb/s aggregate bandwidth.

order
40GBase QSFP+ to QSFP+
4 independent full-duplex channels
Up to 12.5Gbps data rate per channel
QSFP MSA compliant
Up to 100m transmission
MMF Cable
Operating case temperature: 0oC~70oC
Single 3.3V power supply
Typical 0.8W operation power each terminal
RoHS compliant
Infiniband SDR/DDR/QDR
2/4/8G Fiber Channel
10/40G Ethernet
