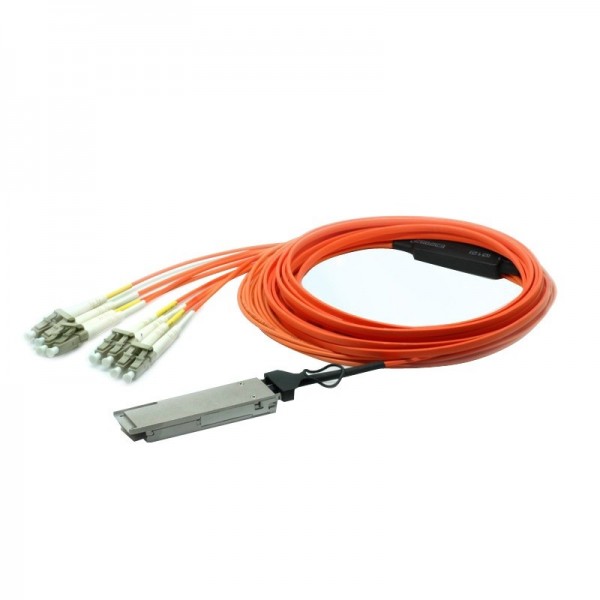

QSFP+ to LC Connetor Optical Cable

10Gtek’s QSFP-8LC-AOC-30M, QSFP+ to 8x LC AOC cable is a 40GBase QSFP+ hybrid optical cable. A side is a QSFP+ optical connector, B side is 4 SFP+ optical connectors. It’s an application together with SFP+ Transceiver.

40GBase QSFP+ to 8x LC Connectors
OM3 MMF Cable
Full duplex 4 channel 850nm parallel active optical cable
Transmission data rate up to 10.3Gbit/s per channel
SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface.
Management Interface and digital diagnostic monitoring(DDM) through I2C
Support Rx output pre-emphasis
4ch 850nm VCSEL array
4ch PIN photo detector array
Helix type multi-mode optical fibre cable of up to 100m
OFNP (Optical Fibre Non-Conductive Plenum) rated cable
Differential AC-coupled high speed data interface
Low power consumption of typical 0.8W per end
Housing isolated from connector ground
Easy to use release mechanism
Operating case temperature 0oC to +70oC
3.3V power supply voltage
RoHS 6 compliant
Laser Class 1
Infiniband transmission at 4ch SDR(2.5Gbit/s), DDR(5Gbit/s) and QDR(10Gbit/s)
Multi-channel 10Gb Ethernet transmission up to 4 channels
Fiber Channel transmission at 8.5Gbit/s per channel, up to 4 channels
QSFP+ to LC cables with MT connectors for plugging into existing cable runs or patch pannels
Creating a breakout cable with four Duplex LC connectors for port expander applications
