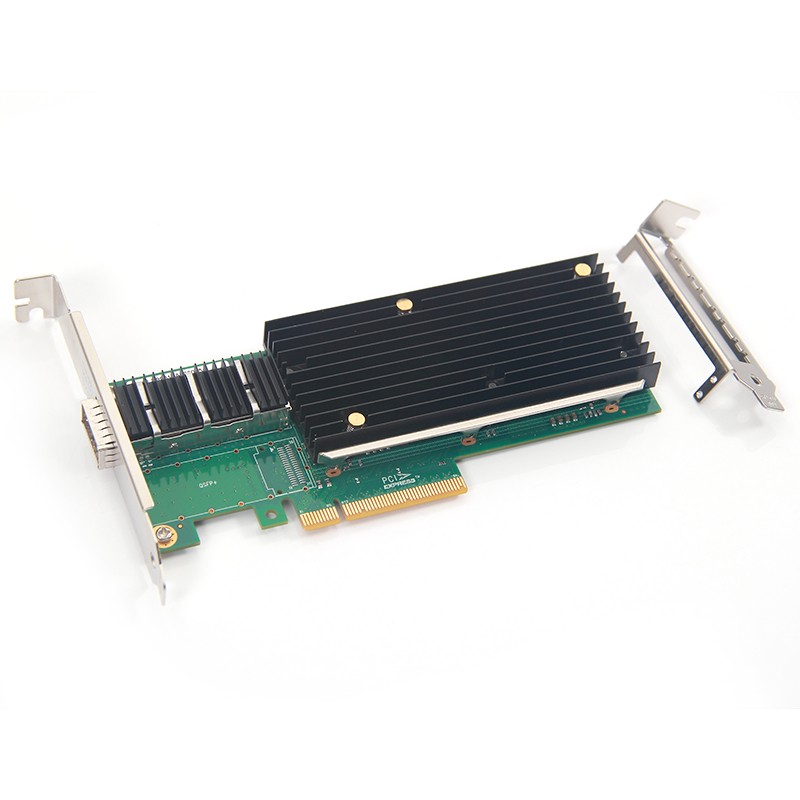

XL710-40G-1Q-X8
QSFP+ 40 Gigabit Ethernet PCI Express CNA/NIC
10Gtek's L710-1QS QSFP+ 40 Gigabit Ethernet PCI Express server adapters are designed for Servers and high-end appliances. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation.
order
Support for jumbo frame up to 9.5KB
Flow control support
Priority Flow Control (draft IEEE 802.1Qbb)
Enhanced Transmission Selection (draft IEEE802.1az)
Statistics management and RMON
802.1q VLAN support
DCB/DCB-X support
Message Signal interrupts (MSI-X)
Storage - Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FCoE.
Host Interface:
PCI Express X8 lanes
Support PCI Express Base Specification 3.0 (8GT/sec)
Flow control support
Priority Flow Control (draft IEEE 802.1Qbb)
Enhanced Transmission Selection (draft IEEE802.1az)
Statistics management and RMON
802.1q VLAN support
DCB/DCB-X support
Message Signal interrupts (MSI-X)
Storage - Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FCoE.
Host Interface:
PCI Express X8 lanes
Support PCI Express Base Specification 3.0 (8GT/sec)
LAN and Virtualization Features:
Network Virtualization offloads for VXLAN and NVGRE
Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh
Physical Functions – Up to 8 per port, up to 16 per device
Support for 128 Virtual Device Queues (VMDq) per port
Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA)
Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)
Network Operating Systems (NOS) Software Support:
Windows
Linux
Network Virtualization offloads for VXLAN and NVGRE
Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh
Physical Functions – Up to 8 per port, up to 16 per device
Support for 128 Virtual Device Queues (VMDq) per port
Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA)
Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)
Network Operating Systems (NOS) Software Support:
Windows
Linux
