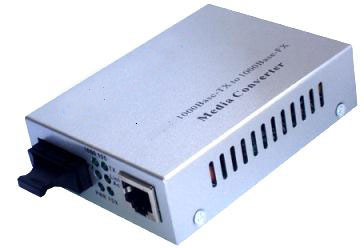

COV-GS01, 1000M Ethernet Singlemode Fiber Converter

10Gtek's COV-G01 Series Gigabit Fiber Media Converter can convert Optical-Electric Ethernet signals between 1000M UTP interface (T) and 1000M optical fiber interface(X). The traditional 1000M Gigabit Ethernet can be extended to the distance of 100km through optical fiber link. The performance and quality of the products are excellent because of adopting latest Gigabit IC from USA. 6 Group LED indicated lights could fully monitor the working conditions of converters. It is easy for users to observe and diagnose the failure of converters. COV Series Gigabit Converters could be used individual, or inserted to 14 slots RACK which is suitable for the use of Network Centre.

Product Description:
● Supports only 1000M and Full Duplex
● UTP port supports MDI-MDIX auto crossover
● Multimode Fiber: the max distance up to 224m/ 550m
Singlemode Fiber: the max distance up to 100km
● Small power consumption, less heat, small size
● Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX
● Connector
UTP: RJ45, 1000Mbps
Fiber: SC/LC, 1000Mbps
● Cable
UTP: Cat. 5 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm (the max distance up to 550/224m)
Fiber (singlemode): 8.3/125, 8.7/125, 9/125μm (the max distance up to 100km)
● LED: PWR,FX Link/Act, TP TX, TP RX,TP 100, TP 1000
● Power: AC 110 ~ 240V to DC 5V; DC48V to DC 5V
● Ambient temperature: 0 ~ +50℃
● Storage temperature: -20 ~ +70℃
● Humidity: 5% ~ 90%
● Dimensions: 26(high)*70(width)*93(length)mm
