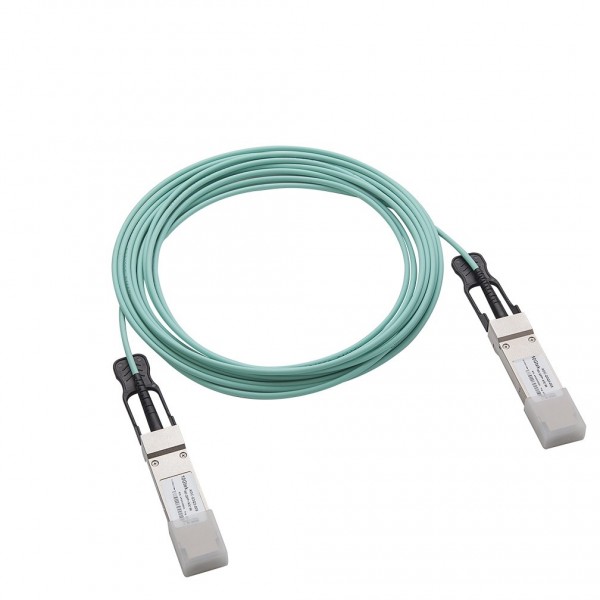

10Gtek Interconnect Solutions 56Gb/s Low Power Active Optical Cable assemblies offer a cost-effective, extended reach option for high-speed data center interconnects. Using 850nm VCSEL technology, 10Gtek QSFP+ cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 14 Gb/s per direction, providing an aggregated rate of 56 Gb/s. The cable is available in a number of standard lengths up to 100 meters.

4-channel bi-directional AOC with aggregated bandwidth of 56-Gbps (Electrical Interface Only)
Compliant to SFF-8436 QSFP+ Specification Revision 4.1
Supports 56-Gbps aggregated data-rate links up to 100-Meter
Low power consumption of max 1.5 W (Compliant to Power Level 1)
Hot pluggable electrical interface
0 to 70℃ case temperature operating range
RoHS Compliance and Lead-Free
InfiniBand FDR,QDR,DDR,and SDR
40GBASE-SR4 Ethernet links
4G/8G/10G Fiber Channel
SATA/SAS Storage
HPC Interconnects
Proprietary Interconnections
