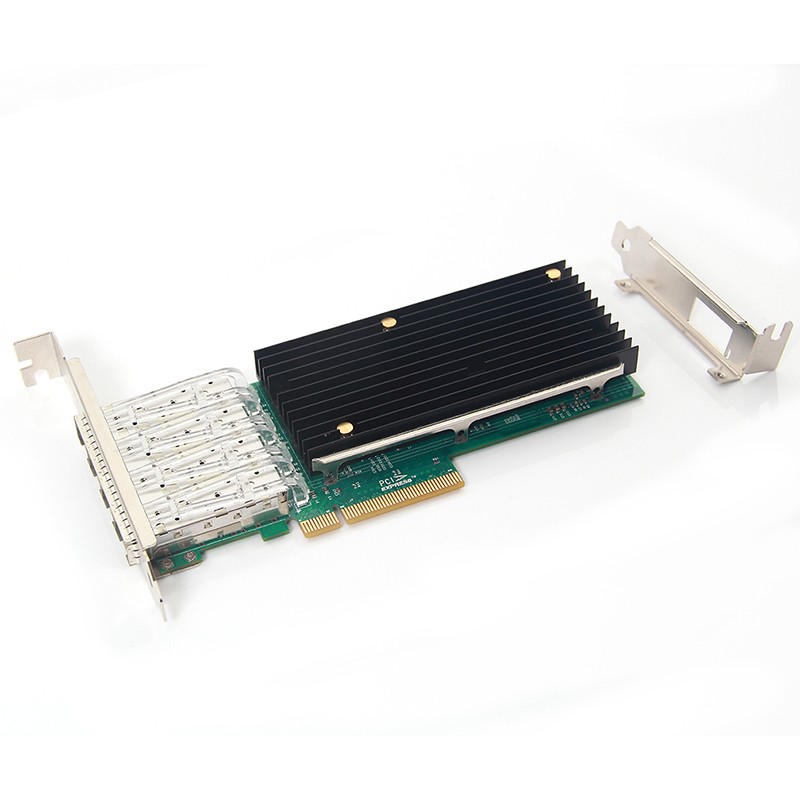

4 Ports SFP+ Ethernet Converged Network Adapter

4 Ports SFP+ Ethernet Converged Network Adapter CNA/NIC (Intel XL710 Based) | X710-DA4 FH

● Intel Ethernet Controller XL710-AM1
● 4x SFP+ Ports
● Compatible for Intel X710-DA4 FH
● Connector & Cable Medium: SFP+ Direct Attach Copper/SFP+ Transceivers
● PCI Express 3.0, 8.0GT/s, x8
● Warranty: 1- year
Key Features:
Quad-port 10 GbE adapters
4x SFP+ Ports
PCI Express* (PCIe) 3.0, x8
Intel? XL710-AM1 Gigabit Ethernet Controller
Exceptional Low Power Adapters
Network Virtualization offloads including Geneve, VXLAN, and NVGRE
Ethernet Flow Director for hardware-based application traffic steering
Data Plane Developer Kit (DPDK) optimized for efficient packet processing
Excellent small packet performance
Intel XL710 Based

Advanced Software Feature :
Adapter fault tolerance (AFT)
Switch fault tolerance (SFT)
Adaptive load balancing (ALB)
Teaming support
IEEE 802.3ad (link aggregation control protocol)
PCIe Hot Plug*/Active Periphera component interconnect (PCI)
IEEE 802.1Q* VLANs
IEEE 802.3 2005* flow control support
Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol(TCP), user datagram protocol(UDP), Internet protocol (IP))
IEEE 802.1p*
TCP segmentation large send offload
MSI-X supports Multiple Independent Queues
Interrupt moderation
IPv6 offloading — Checksum and segmentation capability

Technical Features :
Controller-processor: Intel? Ethernet Controller XL710-AM2
Network Standards: IEEE 802.3
Physical Layer Interface: ? 4x10GBASE-SR4 ? 4x10GBASE-LR4
Operating temperature: 0 °C to 55 °C (32 °F to 131 °F)
Air Flow: Minimum of 150 LFM required
Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Storage humidity: Maximum: 90% non-condensing relative humidity at 35 °C
LED Indicators: LINK (solid) and ACTIVITY (blinking)
LINK SPEED (green=10 Gbps; yellow=1Gbps)
Data rate supported per port: ? Optical: 10 GbE ? Direct Attach: 10 GbE
Bus type: PCI Express 3.0 (8 GT/s)
Bus width: 4-lane PCI Express* and 8-lane PCI Express

Interrupt levels: INTA, MSI, MSI-X
Network Operating Systems (NOS) Software Support :
Windows Server 2012 R2*
Windows Server 2012 R2 Core
Windows Server 2012
Windows Server 2012 Core
Windows Server 2008 R2*
Windows Server 2008 R2 Core
Linux* Stable Kernel version 2.6.32/3x
Linux RHEL 6.5 and RHEL 7.0
Linux SLES 11 SP3 and SLES 12
FreeBSD* 9 and FreeBSD* 10
UEFI* 2.1
UEFI* 2.3
VMware ESXi 5.11 (Limited Functionality)
VMware ESXi 5.51
