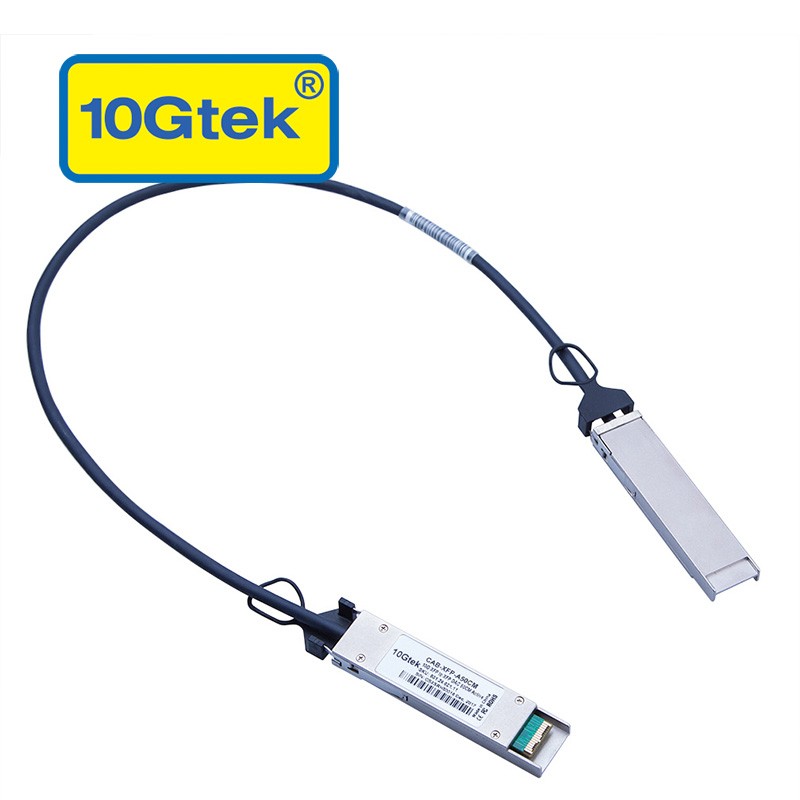

CAB-XFP/XFP-A50CM

XFP to XFP cable assembly, 0.5 Meter Active

XFP Infiband Cables were developed to provide 10Gb/s serial links for a wide range of applications including standards such as OC192/STM-64, G.709, and 10 Gigabit Ethernet, 10G Fibre Channel, and other industry standards. It is ideally suited for 10 GbE datacom (belly-to-belly for high density applications) and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fibre Channel standards.

XFP to XFP Cable is a low cost XFP-SR Optical transceiver replacement solution, which have equal performance with XFP SR transceivers. This XFP directly attached twinax cable assemblies are suitable for very short distances (0.5m to 15m) and offer a highly cost-effective way to connect within racks and across adjacent racks. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities.

This XFP direct-attached twinax cable assembly is 10Gtek's innovatively designed cable, which is controlled by the MCU on the extraction of A0 and A0H adress bit to meet the requirements of the XFP MSA.

Product Features:
● XFP to XFP Connetor
● Copper Active
● 0.5 Meter
● AWG30
● Compliant to XFP MSA
● Compliance to Fiber Channel
???1200-M5-SN-l, 1200-M5E-SN-l,
???1200-M6-SN-l at 10.51875Gbit/s
● Low power consumption
● Wide operating temperature range:
???Standard: 0C to +70C
???Industrial: -40C to +85C
● Hot pluggable
● Lead free
● AC coupling of PECL signals
● Excellent EMI performance
● High reliability
● RoHS Compliant
● Data networking
● Telecommunications switches (SONET)
● Enterprise storage area network(SAN/NAS)
● Network switches and routers
● 15 GbE datacom (belly-to-belly for high density applications)
