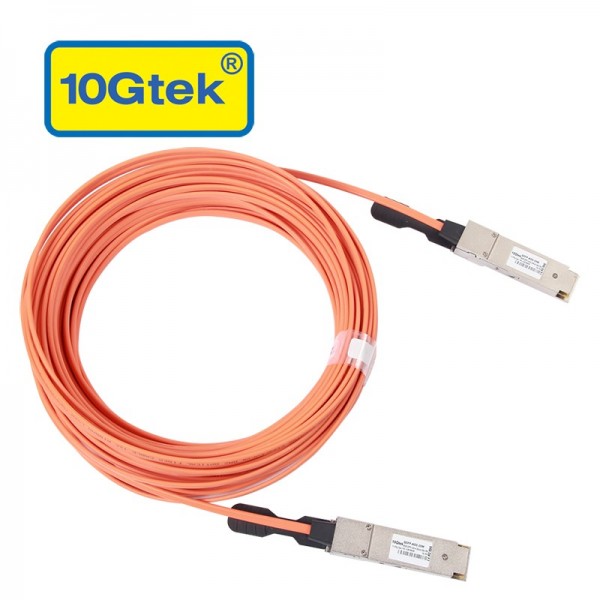

AOC-Q1Q1-100

QSFP+ to QSFP+ AOC

This product is a high data rate parallel active optical cable (AOC), to overcome the bandwidth limitation of traditional copper cable. The AOC offers 4 independent data transmission channels and 4 data receiving channels via the multimode ribbon fibers, each capable of 10Gbps operation. Consequently, an aggregate data rate of 40Gbps over 100 meters transmission can be achieved by this product, to support the ultra- fast computing data exchange. This product is designed with form factor, optical/electrical connection according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference

order
This product is a high data rate parallel active optical cable (AOC), to overcome the
bandwidth limitation of traditional copper cable. The AOC offers 4 independent data
transmission channels and 4 data receiving channels via the multimode ribbon fibers,
each capable of 10Gbps operation. Consequently, an aggregate data rate of 40Gbps
over 100 meters transmission can be achieved by this product, to support the ultra- fast
computing data exchange.

This product is designed with form factor, optical/electrical connection according to
the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest
external operating conditions including temperature, humidity and EMI interference

Product Features:
● 4 independent full-duplex channels
● Up to 12.5Gbps data rate per channel
● QSFP MSA compliant
● Up to 100m transmission
● Operating case temperature: 0~70C
● Single 3.3V power supply
● Typical 0.8W operation power each terminal
● RoHS compliant
● Infiniband SDR/DDR/QDR
● 2/4/8 G Fiber Channel

Applications:
●10/40 G Ethernet
10/40 G Ethernet
