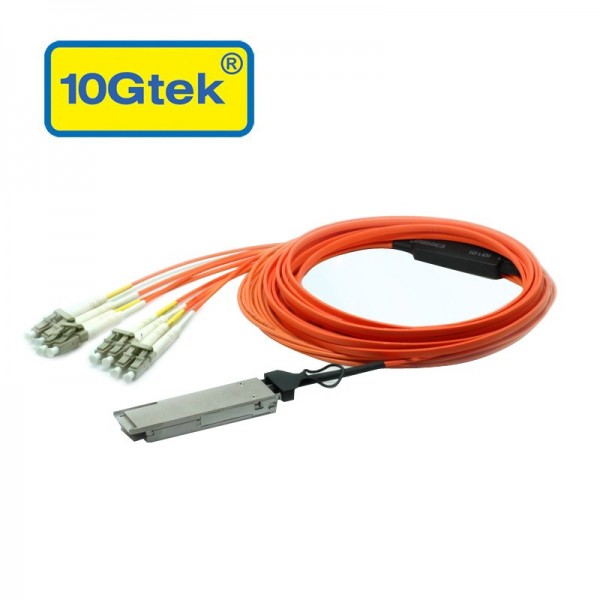

AOC-Q1C2-050

QSFP+ to LC Connetor Optical Cable

This product is a high data rate parallel active optical cable (AOC), to overcome the bandwidth limitation of traditional copper cable. The AOC offers 4 independent data transmission channels and 4 data receiving channels via the multimode ribbon fibers, each capable of 10Gbps operation. Consequently, an aggregate data rate of 40Gbps over 100 meters transmission can be achieved by this product, to support the ultra-fast computing data exchange.

Product Features:
● Full duplex 4 channel 850nm parallel active optical cable
● Transmission data rate up to 10.3Gbit/s per channel
● SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface.
● Support Rx output pre-emphasis
● 4ch 850nm VCSEL array
● 4ch PIN photo detector array
● Helix type multi-mode optical fibre cable of up to 100m
● OFNP (Optical Fibre Non-Conductive Plenum) rated cable
● Differential AC-coupled high speed data interface
● Low power consumption of typical 0.8W per end
● Housing isolated from connector ground
● Easy to use release mechanism
● Operating case temperature 0°C to +70°C
● 3.3V power supply voltage
● RoHS 6 compliant
● Laser Class 1


Applications:
● Infiniband transmission at 4ch SDR(2.5Gbit/s), DDR(5Gbit/s) and QDR(10Gbit/s)
● Multi-channel 10Gb Ethernet transmission up to 4 channels
● Fiber Channel transmission at 8.5Gbit/s per channel, up to 4 channels
● QSFP+ to LC cables with MT connectors for plugging into existing cable runs or patch pannels
● Creating a breakout cable with four Duplex LC connectors for port expander applications
● SDR / DDR / QDR
10/40 G Ethernet
