CAB-QSFP/CX4-P3M

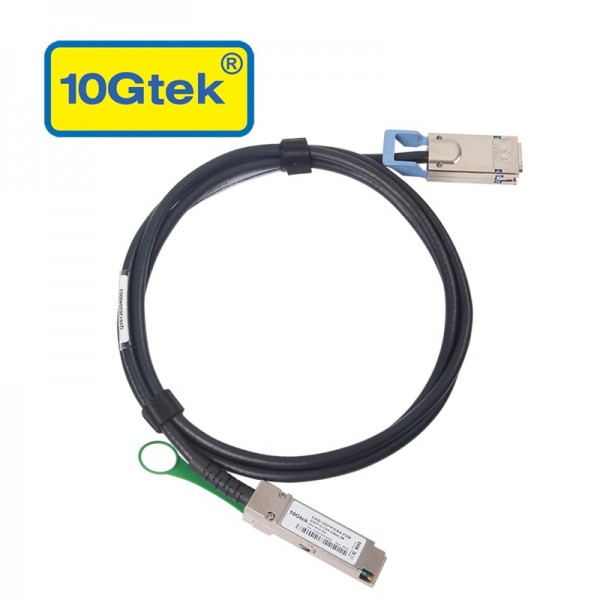

QSFP+ to CX4 (SFF-8470) Cable

QSFP to CX4/ 4x cables use cutting edge technology to provide an excellent hybrid cable solution for CX4/InfiniBand and QSFP rated switches, network adapters, and storage arrays. These cables have a QSFP connector on one end and a CX4 Connector on the opposite end. Each CX4-QSFP copper cable permits auto-negotiation between the two connected devices for optimal network throughput. Reaching data rates of up 5Gpbs per channel. Compatible with 4x Infiniband SDR/DDR and 10 GbE applications.

Specifications
● Length = 3 Meters
● Wire Size (AWG) = 28
● Connector A = QSFP
● Connector B = CX4 (SFF-8470)
● Conductor: Copper
● Zinc die-cast QSFP connectors with pull-release latch
● SFF-8470 connectors with side squeeze latch
● High performance 8 pair wire construction
● Low cross-talk and pair-to-pair skew
● Supports 10-Gigabit Ethernet
● Supports QSFP, 10GBASE-CX4 and SDR/DDR InfiniBand
● Fully compliant to QSFP MSA
● RoHS Compliant
● 5-Year Warranty
● CX4/InfiniBand and QSFP rated switches
● Network adapters
● Storage arrays
