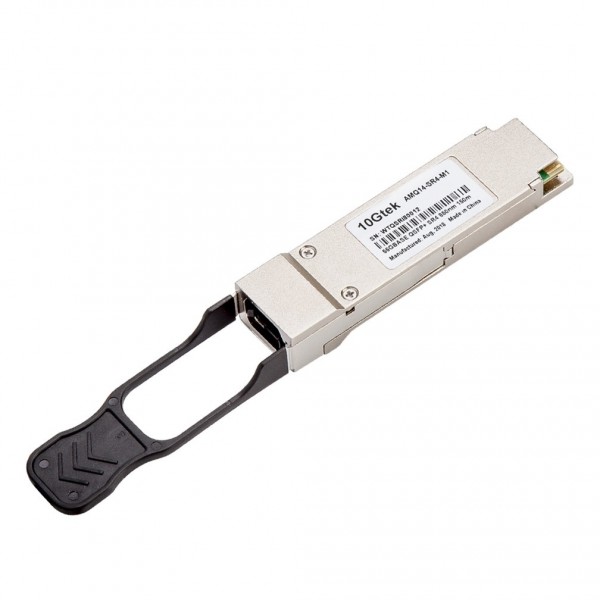

AMQ14-SR4-M1

QSFP+ SR4

10Gtek’s AMQ14-SR4-M1 Modules are designed for use in Ethernet, SAS, and Infiniband links over multimode fiber. They are compliant with the QSFP+ MSA and the Ethernet, SAS and InfiniBand architecture specifications. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

order
4 independent full-duplex channels
Up to 100 meters transmission over OM3 MMF
Up to 150 meters transmission over OM4 MMF
Up to 11.2Gbps data rate per channel
MTP/MPO optical connector
QSFP MSA compliant
Digital diagnostic capabilities
CML compatible electrical I/O
Single +3.3V power supply
XLPPI electric interface (with 1.5W Maxpower)
Operating case temperature: 0oC~70oC
RoHS-6 compliant
Rack to rack
Data Center
Infiniband QDR, DDR and SDR
56G Ethernet
