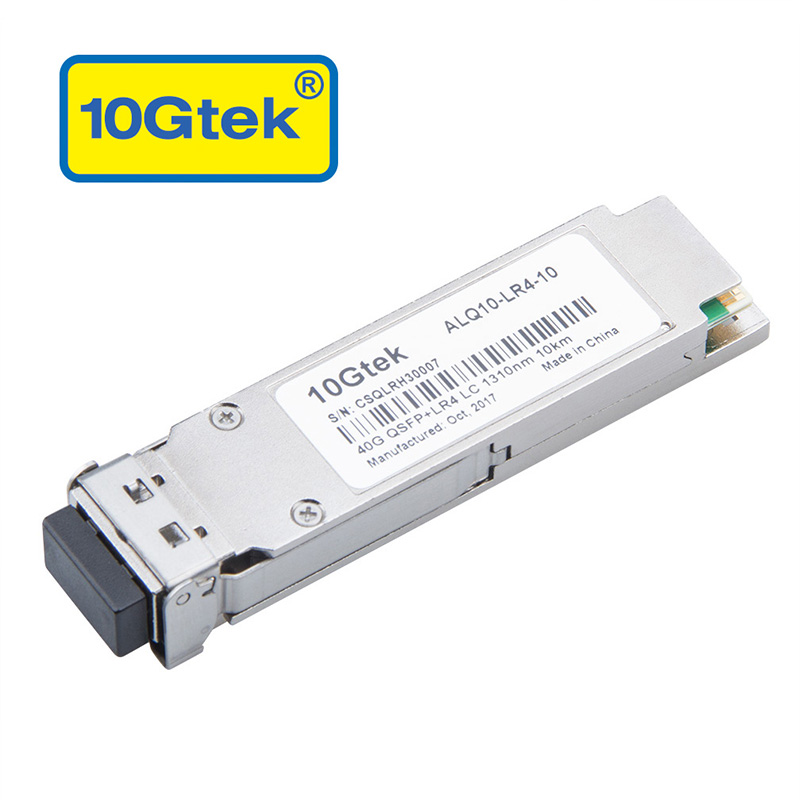

ALQ10-LR4-10

40GBASE-LR4 QSFP+ Transceiver for SMF, 10km

10Gtek's QSFP-40G-LR4 Module supports link lengths of 100m and 150m respectively on laser-optimized OM3 and OM4 multimode fiber cables. It primarily enables high-bandwidth 40G optical links over ribbon fiber cables terminated with multi-fiber connectors,

order
4 CWDM lanes MUX/DEMUX design
Dual LC connector
Up to 10km transmission over SMF
Aggregate Bandwidth of up to 44Gb/s
IEEE 802.3ba Compliant
QSFP+ MSA Compliant
Operating Teperature:0~70oC
Single 3.3V Power Supply
Maximum power consumption 3.5W
● GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
● GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
● GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors
● IEEE 802.3ba
